CTM 25-8
CTM 25-8

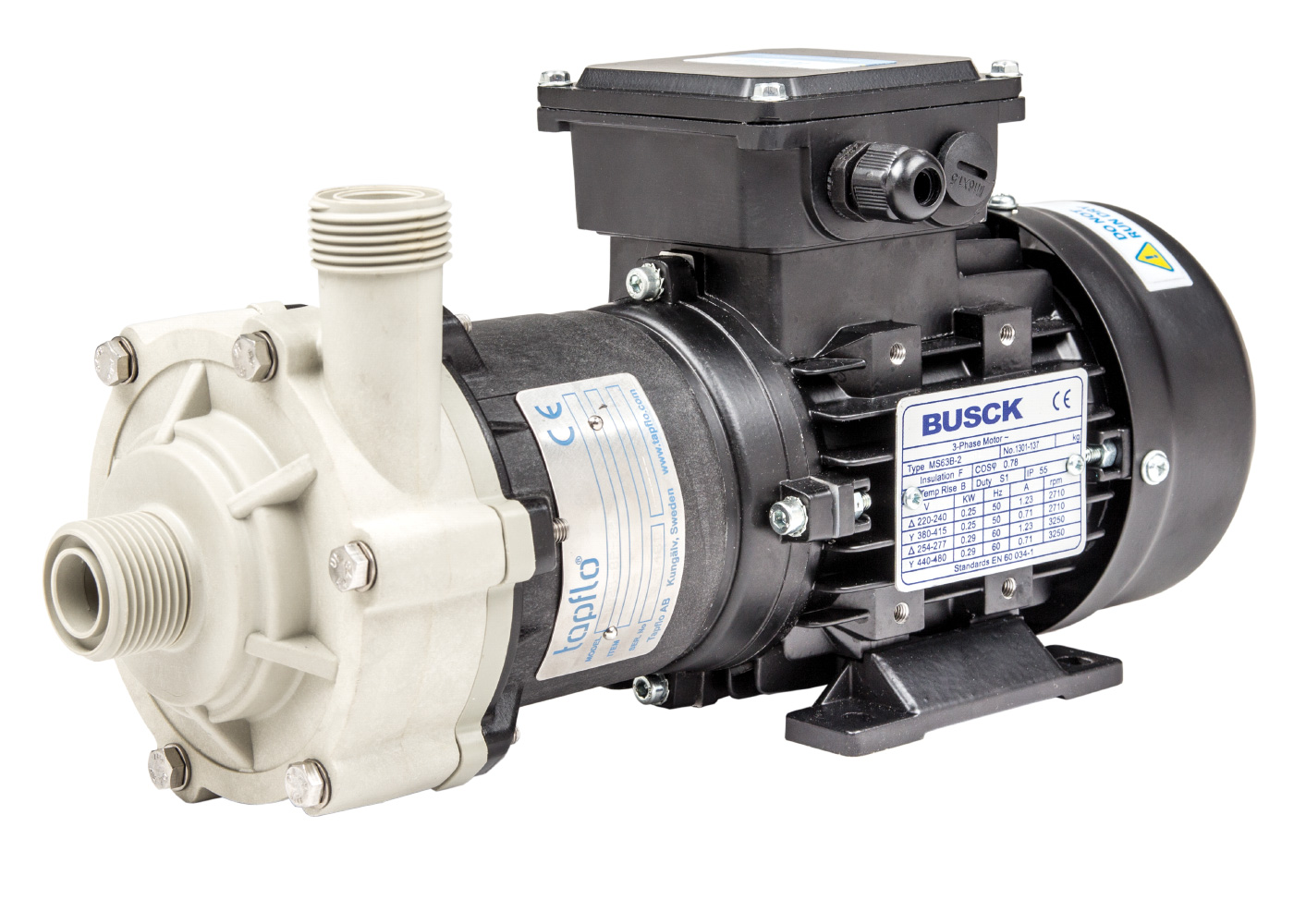

CTM 25-8 has 0.25 kW motor, maximum capacity of 7 m3/h and maximum head 8.5 m. Available in PP and PVDF.
SPÉCIFICATIONS CTM 25-8
Données
| Dimensions | mm/inch |
| Height A | 90 / 3.54 |
| Length B | 279 / 10.98 |
| Height C | 63 / 2.48 |
| Depth D | 126 / 4.96 |
| Materials | |
| Pump casing and isolation shell (rear casing) | PP-GF (30%) or PVDF |
| Impeller | PP or PVDF |
| Lantern (not wetted) | PP-GF (30%) |
| Static bushings | Ceramic (standard) or SiC |
| Rotating bushings | PTFE-graphite (standard) or SiC |
| O-rings | FKM, EPDM |
| Magnets | NdFeB |
| General characteristics | |
| Temperature range | PP pumps: 0C …. +70C |
| PVDF pumps: 0C …. +90C | |
| System pressure rating | PP pumps: PN6 at 20C, PN2 at 70C |
| PVDF pumps: PN6 at 20C, PN2 at 90C | |
| Viscosity | 200 cSt max |
| Solids | 2% max concentration by weight |
| Hardness 800 Vk / size 0,1 mm | |
| Motor | IEC standard, 3-phase |
| 0.25 kW/2900 rpm, IP 55, frame IEC B3/B14 |
Courbe de performanceLes courbes de performance sont basées sur l’eau à 20 ° C. D’autres circonstances pourraient modifier la performance.
